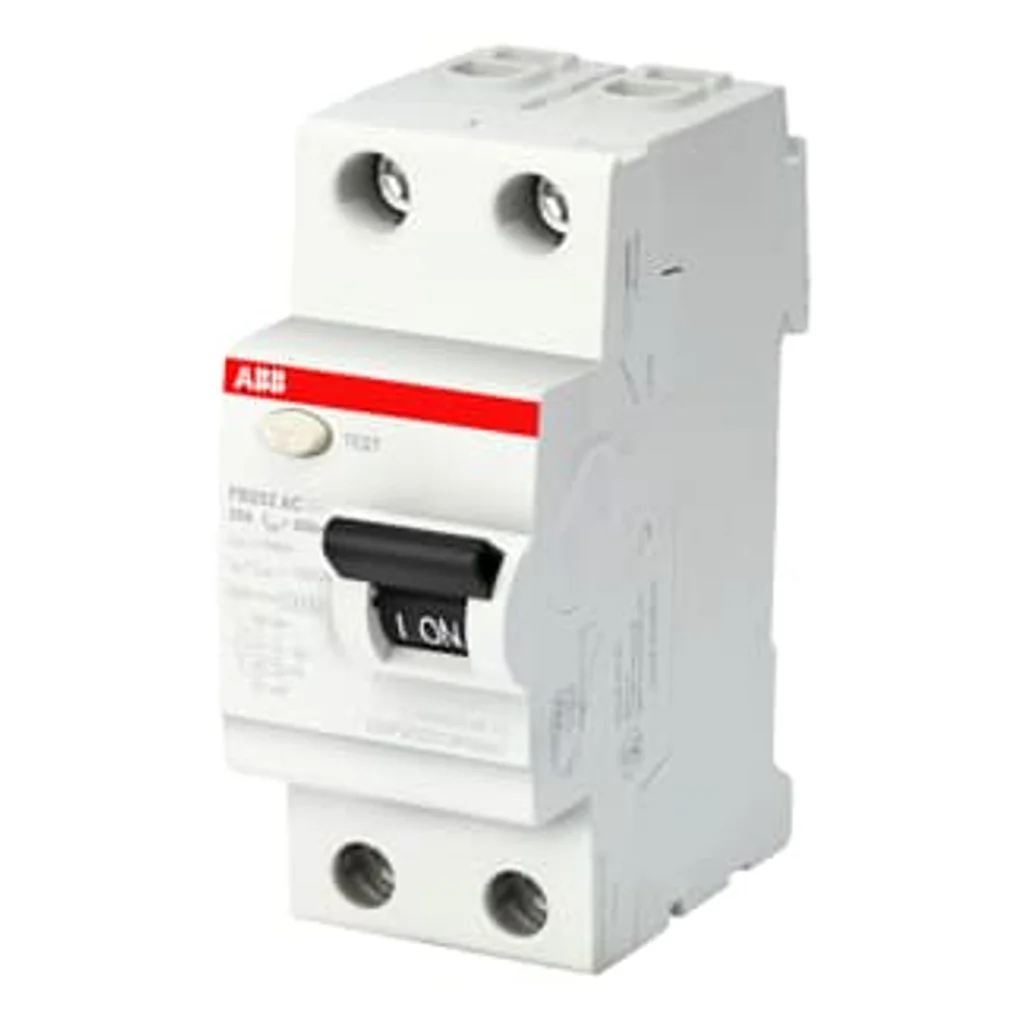

Brand

ABB

Product Type

RCCB

Series

FB200

Model

FB202 AC

Rated Residual Current | Product Code

30mA | 1SYF202015R1630

100mA | 1SYF202015R2630

300mA | 1SYF202015R3630

Technical

Standards

IEC 61008; IS12640-1:2008

Type Of Residual Current

AC type

Rated Operational Voltage

240 V AC

Rated Insulation Voltage (U I )

500 V

Rated Impulse Withstand Voltage (U Imp )

4 kV

Dielectric Test Voltage

2.5 kV

Rated Current (I N)

63 A

Rated Conditional Short- Circuit Current (Inc )

10 kA

Rated Frequency (f)

50 Hz

Electrical Endurance

10000DC cycle

Mechanical Endurance (Nendu)

20000 cycle

Number Of Poles

2

Tightening Torque

2.8 N·m

Actuator Type

Toggle

Actuator Marking

I / O

Recommended Screw Driver

Pozidriv 2

Remarks

Protection degreeterminals: IP20; with housing IP40

Environmental

Ambient Air Temperature

Operation -5 ... +40 °C Storage -40 ... +70 °C

Environmental Conditions

28 cycle 55°C @ 90-96% 25°C @ 95-100%

Dimensions

Product Net Width

35mm

Product Net Height

85mm

Product Net Depth / Length

69mm

Product Net Weight

0.2 kg

Warranty

As Per Manufacturer Terms and Condition
