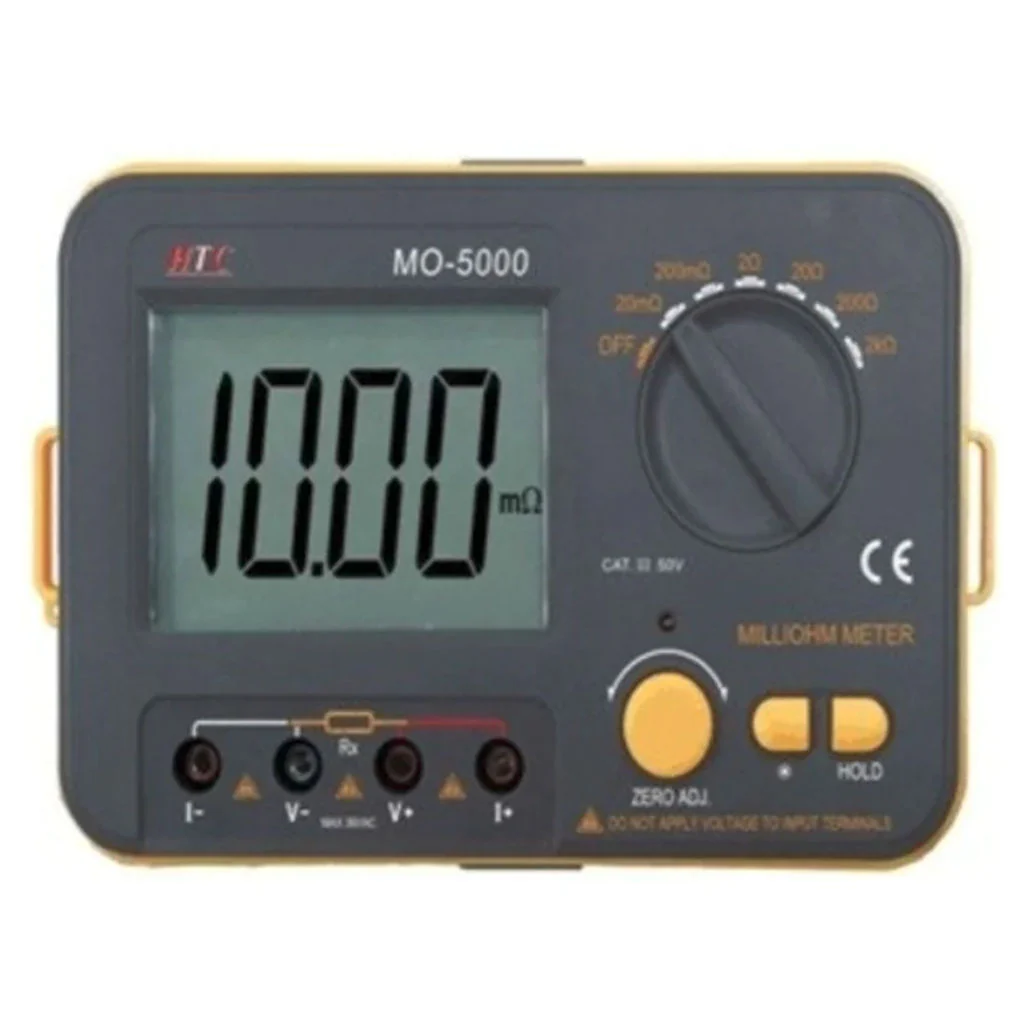

Product Description

• Large LCD Display For Easy Reading

• 4 Wire Testing, Capable Of Testing Extreme Low Resistance

• Accurate Measurement Of Conductor,Electric Heading Elements And Solder Point

• HOLD Key For Data Hold

• Connection For External Power Supply

• High Measurement Range Of 0.01mΩ to 2kΩ at 6 Ranges

• Backlight LCD For Easy Reading Under Dark Light

• Strong Anti-Magnetic And Anti-Jamming Functions

• Full Function Protection

• Standard Accessories: 4-Wire Test Lead, Shoulder Strap, Battery, Operation Manual, Packing Gift Box

• Product Code: MO-5000

• Model No: HTC-F5

• Dimension: 176(L) x 116(W) x 63(D)mm

• Warranty: As Per Manufacturer Terms And Condition

Product Specification

Range / Range / Resolution	Measuring Current
20mΩ / ±(1.5%rdg±3) / 0.01mΩ	Approx. 500mA
200mΩ / ±(0.5%rdg±3) / 0.1mΩ
2Ω / ±(0.5%rdg±3) / 1mΩ
20Ω / ±(0.5%rdg±3) / 10mΩ
200Ω / ±(0.5%rdg±3) / 100mΩ
2kΩ / ±(0.5%rdg±3) / 1 Ω

Special Function	MO-5000
Low Battery Indication	Less than approx. 7.5V
Functional Protection	-
Sampling Rate	3 times/sec.
Operation Mode	Manual Range
Max. Display	1999
LCD Size	75 x52 mm
Power Source	1.5V AA battery x6pcs, or External DC 9VPower Source
Power Consumption	Quiescent Current Approx.50mA
