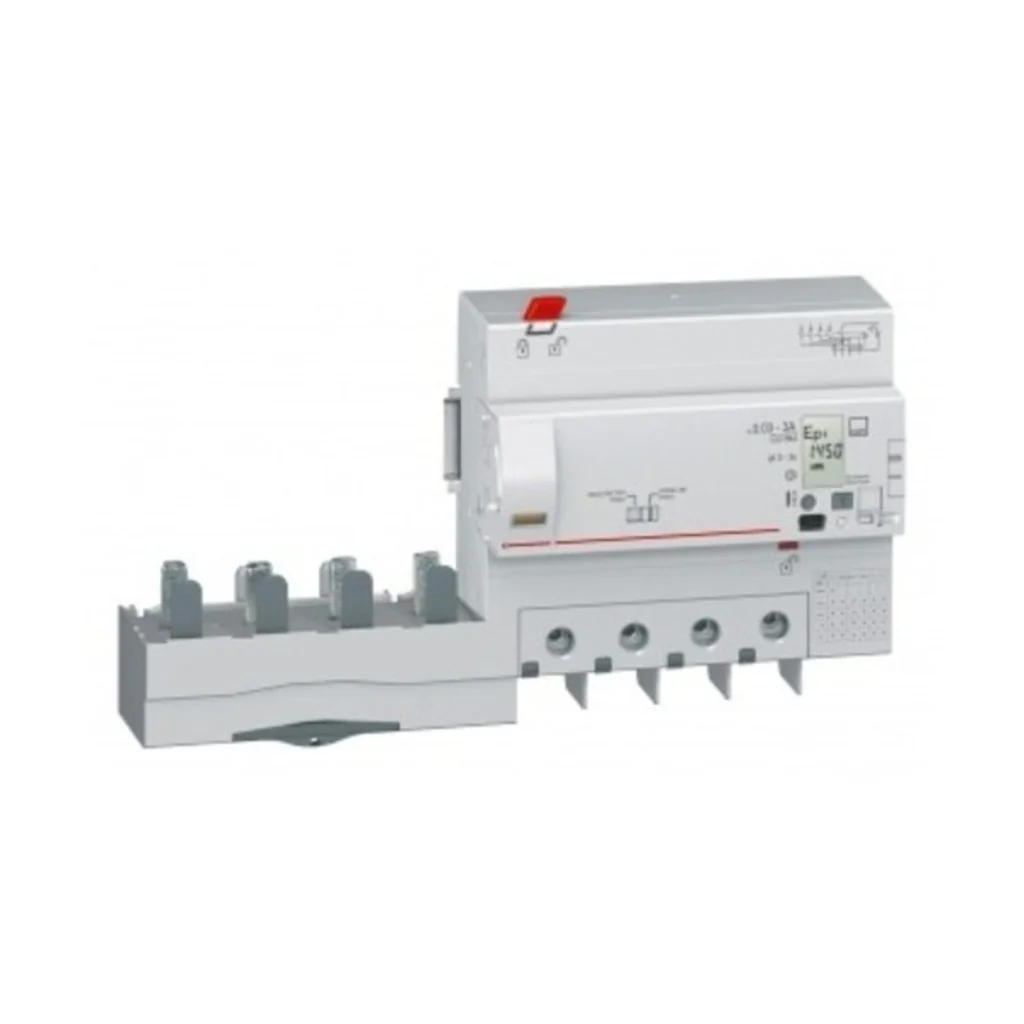

Product Description

• Conform To IEC 61009-1

• Hpi Type: Detect Faults With Ac And Dc Components Increased

• Immunity To False Tripping

• Inbuilt Measurement/Metering Option

• Measurement - V,A, F, PF, Kwh, KVA, KVAr, THD

• Metering - V, A, F, Kwh

• Rs 485 Port For Remote Reading

• Di-Electric Test Button Inbuilt

• Ergonomic Test Button

• Scroll Button For Easy Readings

• RLCD Display On Front Facia

• For Mounting On The Right-Hand Side Of 1.5 Module Per

• Pole DX3 MCBs

• Easy & Fast Association Mechanism

• 70 Sq Mm Terminals

Product Specification

Brand	Legrand
Model	Dx3
Product Code | Rated Current	4106 57 | 63 A 4106 58 | 25 A
Product Type	RCD
Color	White
Voltage	415 V
No Of Pole	Four Pole
Warranty	As Per Manufacturer Terms and Condition
